550 x 383 mm

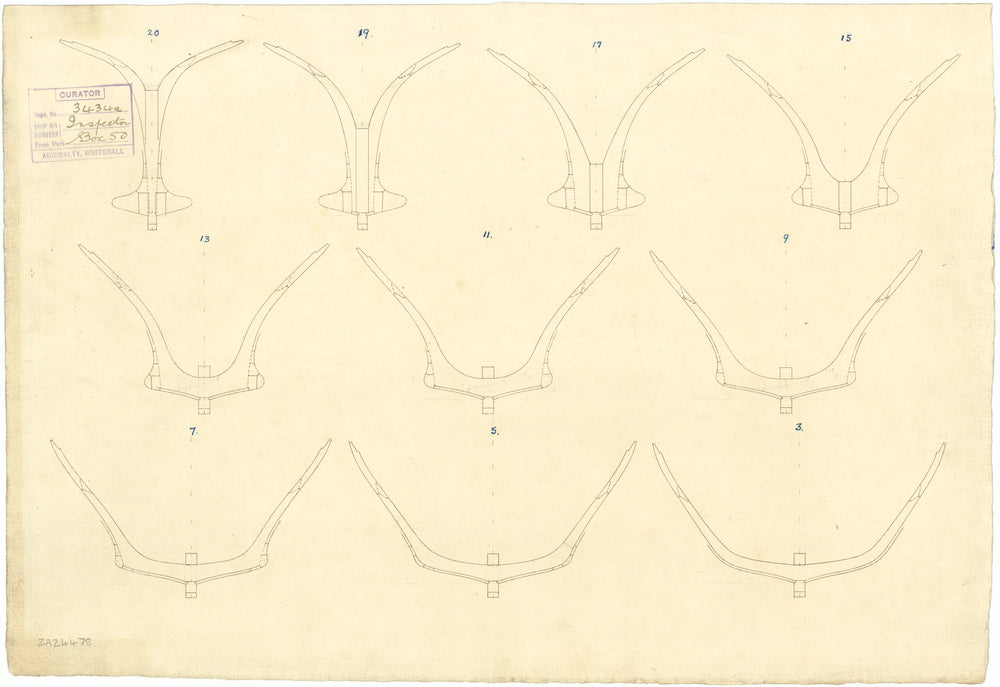

Scale: not shown. Plan showing the framing sections for Stations 20, 19, 17, 15, 13, 11, 9, 7, 5, and 3 for the Inspector (1782), a 16-gun Ship Sloop.
Note that these differ from ZAZ4479. There is no evidence except for the Admiralty stamp that these relate to Inspector (1782) apart from the similarity of the fin-like bulges.
Object number: ZAZ4478
Date: Circa 1780
Original dimensions: 383mm x 550mm
Artist: Navy Office
- Full-colour art print
- Reproduced at the same size and scale of the original plan with no border.
- © Crown Copyright. Photo: National Maritime Museum
- Image reference: J4478
Ship plan prints
In response to customer demand, we have developed a special 'rolled plan' print product for our ship plans collection. Rolled plans are printed in colour on a basic paper using affordable inks to keep costs down. We print directly from extremely high-resolution master files to ensure faithful reproduction of the original items.
Prices vary according to the dimensions of the original plans.
Manufactured in the UK
All products are printed in the UK, using the latest digital presses and a giclée printmaking process.
We only use premium branded inks, and colours are independently verified to last between 100 and 200 years.
