Anchor model

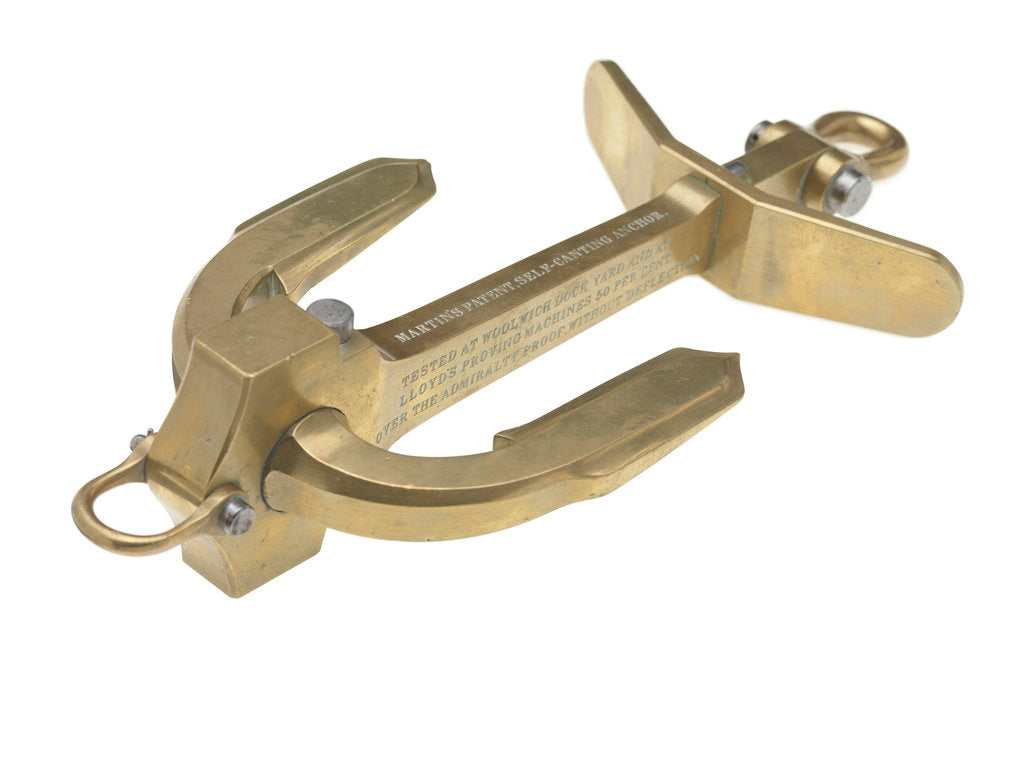

Scale: Unknown. A model of Martin's patent self canting anchor (1869). The model has been cast entirely from brass and illustrates the working parts of this type of anchor with swivelling flukes and shackles. At the crown, the flukes pass through as a single piece on the arms and are held in position by a large steel pin with a fid wedge at one end. At the very top of the crown, a brass D-shackle is fitted, again secured with a steel pin and fid wedge. The shank is rectangular in section and tapers towards the top passing through the flat, shallow V-shaped stock which is held in place with a fidded steel wedge. Above this is fitted a brass bow shackle, held in place by a steel bolt. On each face of the shank between the arms and the stock is inscribed: 'MARTIN'S PATENT, SELF-CANTING ANCHOR', 'TESTED AT WOOLWICH DOCKYARD AND AT LLOYD'S PROVING MACHINES 50 PER CENT OVER THE ADMIRALTY PROOF, WITHOUT DEFLECTION', 'THE ONLY ANCHOR WITHOUT WELDING', 'AS SUPPLIED TO THE ENGLISH, FRENCH AND AMERICAN GOVERNMENTS AND THE MERCANTILE NAVY.'Original size: 340 mm x 155 mm x 80 mm
- Image reference: L1465-001
- National Maritime Museum, Greenwich, London, Caird Collection
