Component model; Sectional model
Image information
Sizing information
| Overall size (inc frame) | x cm ( x in) |
| Depth | cm (in) |
| Artwork | x cm ( x in) |
| Border (mount) |
cm
top/bottom
(in)
cm left/right (in) |
| The paper size of our wall art shipped from the US is sized to the nearest inch. | |
Component model; Sectional model

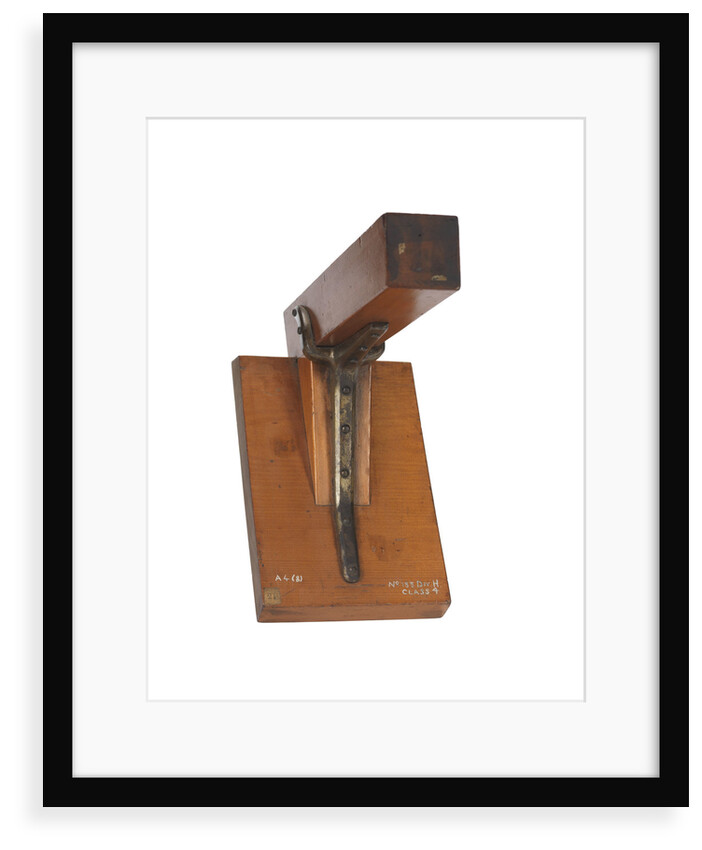

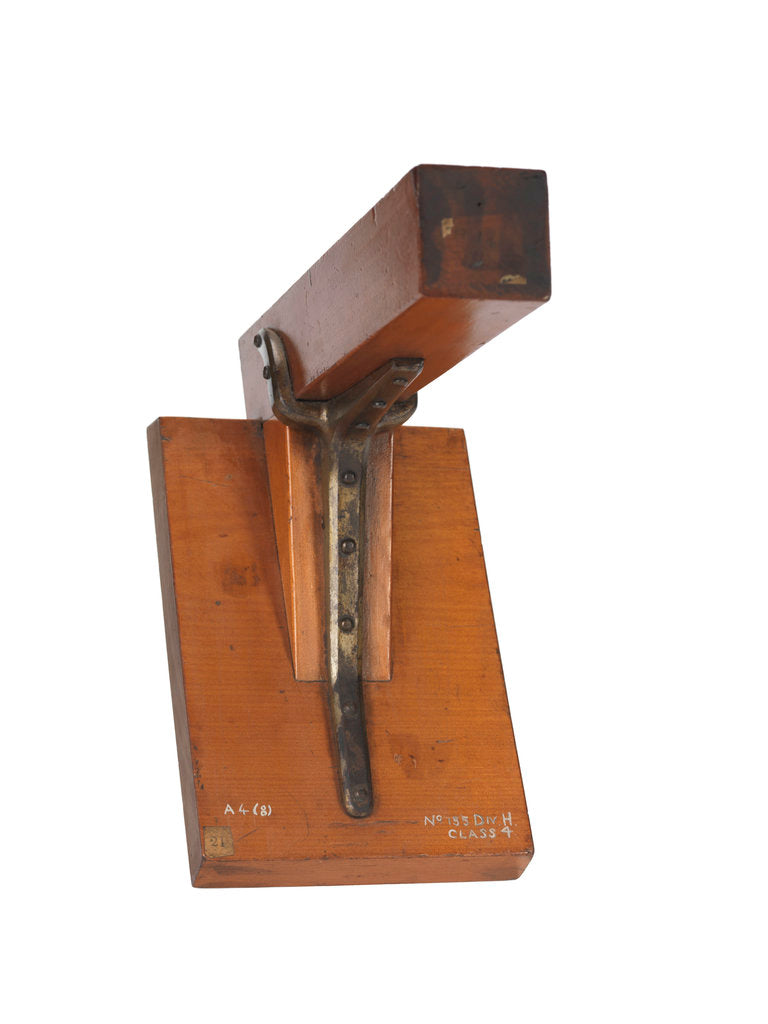

Scale: Unknown. A sectional model depicting a plan for connecting beams to ship sides, with iron knees under the beams and chocks behind the knees. The side of the ship, beam and chock have been made in mahogany and varnished and the iron knee has been depicted in lacquered iron. The knee has been nailed to the wooden parts to resemble iron bolts. A small paper label marked '21' has been applied to the inner face of the ships hull.
Original size: 230 mm x 129 mm x 169 mm
- Image reference: L2227
- National Maritime Museum, Greenwich, London
