Diptych dial, leaves Ib and IIa

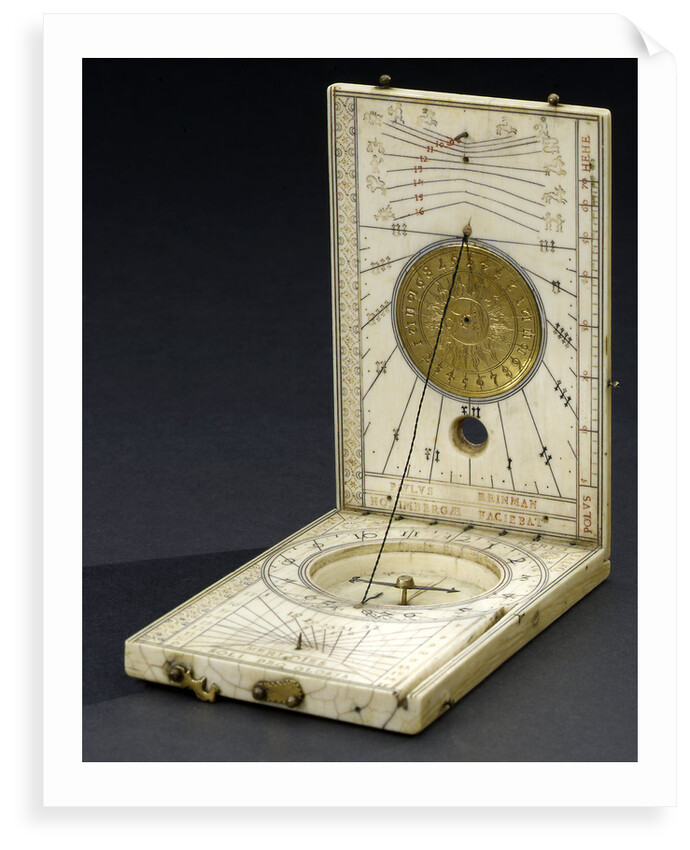

Diptych dial for latitudes 5-70 North for equinoctial dial (49 North for the horizontal and vertical dial). Rectangular ivory dial consisting of two leaves that fold flat when not in use. Leaf Ia features a standard windrose (see related terms), inside of which is set a lunar volvelle. Stamped above and below the windrose is an instruction in German: 'If I, the compass, am to point correctly, then do not use me near iron'. On the right-hand side of leaf Ib is a degree scale for use with the equinoctial dial. A black string gnomon is attached between the inner surfaces of the two leaves. It carries the horizontal dial and a single dial for Italian and Babylonian hours with a brass pin gnomon. Leaf IIb contains a sizeable table of latitudes for places in Europe. Reinmann's maker's mark - a crown - appears twice at the base of the table, and on leaf Ib the dial is signed 'PAVLVS REINMAN NORIMBER GÃ”Ã²Ã¡â”œÃ FACIEBAT.'.
- Image reference: F1332-2
- National Maritime Museum, Greenwich, London, Marion Lord Collection
