Plan and two sections of a proposed dockyard, possibly at Deal

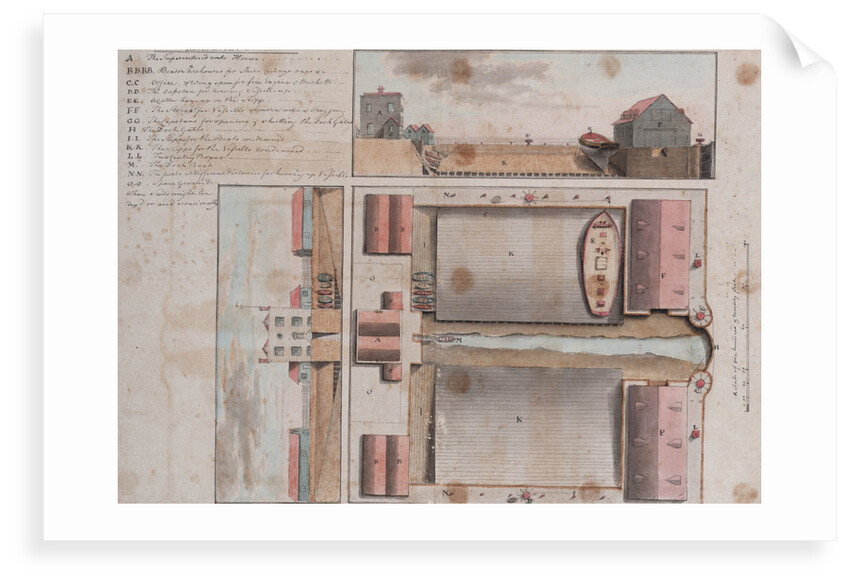

This is an extremely detailed proposal, to a scale measuring 120 feet and with a lettered key, for a small tidal dockyard. Its evident purpose is the maintenance and minor repair of small naval vessels on the two sloping 'slipps' flanking the central channel that runs back from the dock gate. Two smaller slips for boats lie beneath the Superintendent's House at the landward end. The other two views are transverse sections at right angles, on the axis of the channel and across it. While the drawing does not name Deal as the location, this was probably where Bray lived and it already had a small yard where the Navy built and repaired ships' boats, of which his proposal is a logical development. Whether he ever submitted it to the Admiralty for consideration is not yet known.
Gabriel Bray (1750-1823)
Original size: 269 mm x 377 mm
