H.M. Submarines "M.1-M.2."
2090 x 635 mm

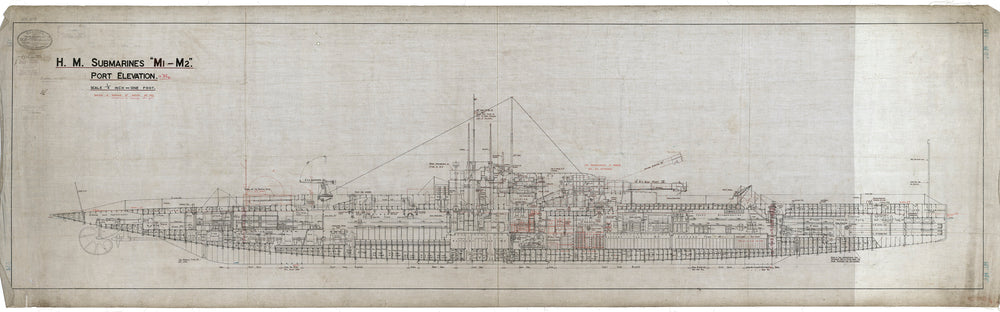

Scale 1:48. Plan shows The drawing show a port inboard profile view (Starboard profile looking to port) and fly diagram, as fitted, of the M-class submarine seaplane carrier M2 (1919). The plan shows modifications made at Chatham yard in vermillion ink, dated October 1927. Further corrections were made at Chatham Yard, dated November 1928. There is a a faded Vickers stamp on the left hand side of the plan. There is a stamp from Chatham Yard Constructive Department, dated 6 September 1923, on the left hand side of the plan. A second stamp from the Chatham yard Engineering Department, dated 16 November 1923. A Vickers stamp with the Admiralty Overseer's signature, dated 23 August 1920 is also present on the left hand side of the plan.
Object number: NPB6196
Date: circa 1920
Original dimensions: 635 mm x 2090 mm
- Full-colour art print
- Reproduced at the same size and scale of the original plan with no border.
- © National Maritime Museum
- Image reference: J9714
Image information
Ship plan prints
In response to customer demand, we have developed a special 'rolled plan' print product for our ship plans collection. Rolled plans are printed in colour on a basic paper using affordable inks to keep costs down. We print directly from extremely high-resolution master files to ensure faithful reproduction of the original items.
Prices vary according to the dimensions of the original plans.
Manufactured in the UK
All products are printed in the UK, using the latest digital presses and a giclée printmaking process.
We only use premium branded inks, and colours are independently verified to last between 100 and 200 years.
